Portable Construction Site Canteen Prefab Camp Modular Container House

Name: Portable Construction Site Canteen Prefab Camp Modular Container House
Brand: KHOME
Price: 1 USD

Quality Portable Construction Site Canteen Prefab Camp Modular Container House wholesale

Brand Name : KHOME

Model Number : KHPA

Certification : CE,ISO

Place of Origin : Henan, China

MOQ : 4 units

Price : Negotiate

Payment Terms : T/T, L/C, Western Union

Supply Ability : 420 units per month

Delivery Time : Depend on quantity needs

Packaging Details : Naked packaged in 20 GP or 40 HQ shiping container

Wall Material : Rock wood/PU/EPS

Steel Frame Material : Gavalnized Steel with Powder Coat

Wall Panel Thickness : 50 mm/ 75 mm/ 100 mm

Column Material : 2.3mm thickness galvanized steel structure

Cutomized : Standard or Customized

Contact Now

Portable Construction Site Canteen Prefab Camp Modular Container House

I. Product Introduction

Since the popularity of container houses is increasing year by year, it proves its recognition and acceptance of the market. After all, it is a new type of mobile house. Even though its service life will not be as long as the permanent building, but if it can maintain the container house scientifically in the use process, it can greatly improve the service life of the container house.

The container mobile house is mainly used in temporary houses such as housing construction sites, municipal engineering sites, railway engineering sites, highway engineering sites, and water conservancy engineering sites.

II. Product description

Portable Construction Site Canteen Prefab Camp Modular Container House

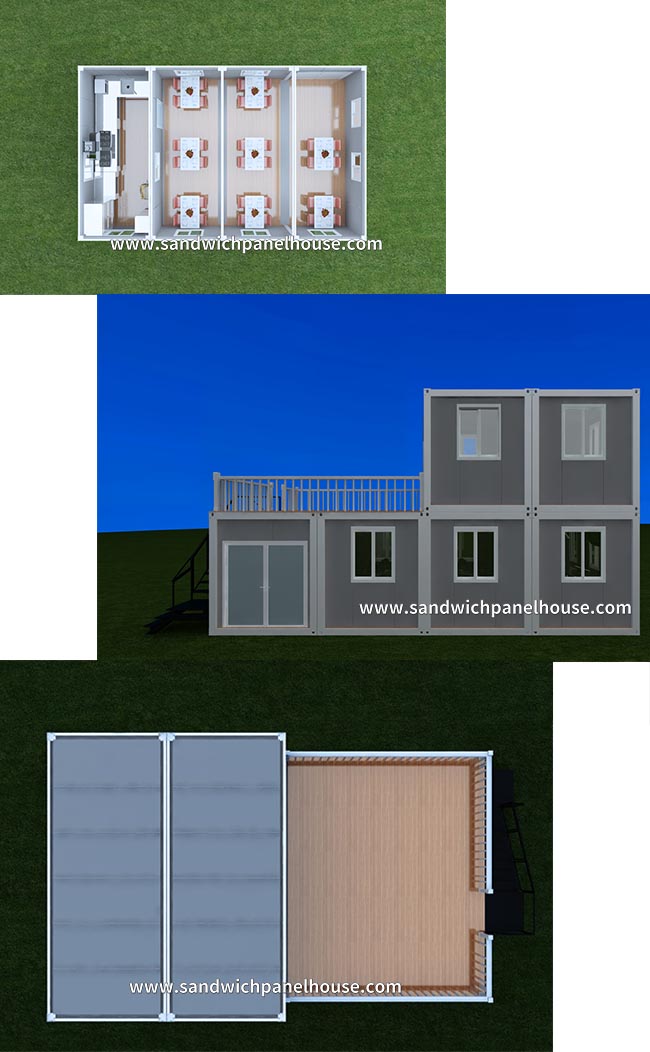

This portable sandwich panel house is designed for the site canteen.

It is a two-story container building. On the ground floor, there is the kitchen and the dining hall. And the first floor is an entertainment room with a platform for people to enjoy themselves.

Layout information

1	Building area	144 sqm
2	Land area	72 sqm
3	Capacity	40 people

III. Product show

Portable Construction Site Canteen Prefab Camp Modular Container House

III. Main Specification

Part 1: Roof System (roof plate + roof purlin + roof insulation + ceiling)
I	Roof Plate	Roof tile is 0.5 mm thick steel sheet; Pre-coated and color coated;
		Strong and corrosion resistance.
ii	Roof Purlin	1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square tube + 5pcs 40x80mm Galvanized Square tube;
		Firm, strong corrosion resistance and has a long service life.
Part 2: Steel Frame (Corner post + column + beam + bolt)
I	Corner Connection Part	Material: 4 mm Thickness Shaped Steel, surface spray treated by machine after repeatedly polished;
		Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top);
		Feather: Safe, strong, and corrosion resistance.
		The color is glossy and can last for a long time.
ii	Column	Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;
		Size: 160* 160* 2480mm;
		Feather: Safe, strong, and corrosion resistance.
		The color is glossy and can last for a long time.
iii	Top and Floor Long Beam	Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;
		Size 1: 3680* 60* 160 mm;
		Size 2: 5680* 60* 160 mm;
		Feather: Safe, strong, and corrosion resistance. The color is glossy and can last for a long time.
iv	Top & Floor Short Beam	Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;
		Size 1: 2680* 60* 160 mm;
		Feather: Safe, strong, and corrosion resistance.
		The color is glossy and can last for a long time.

Portable Construction Site Canteen Prefab Camp Modular Container House
