Flat Pack Modular Container Sleeping Quarters
In some special industries, such as the mining and the petroleum industry, the on-site construction environment is relatively harsh,
and affected by the characteristics of construction, there has always been such a demand.
After the 20 Ft Accommodation Container is delivered to the site, it can be used directly without installation.
As the project progresses, the house can be moved to another place as a whole.
Due to the need for overall hoisting and movement, the overall rigidity of the house is relatively high,
and the corresponding processing technology is also relatively strict.
The manufacturing cost of this type of house is relatively high, so its development in China has been relatively slow.
In recent years, due to the rapid growth of my country's economic level, the development of the Flat Pack Modular Container
has also made a qualitative leap.
Features of Container Worker Dormitory:
① Modularization: Since the length, width, and height of this type of house are all fixed dimensions,
several fixed functional room layouts can be set up. According to different usage requirements,
the houses of various functions can be flexibly combined to make It becomes a finalized product, and mass production becomes possible;
② Highly integrated: No need for secondary decoration on site, you can move in after hoisting and setting down;
③ Overall movement: The site can be moved as a whole without disassembly and assembly,
which greatly reduces the cost of on-site secondary utilization;
④Low transportation cost: In order to adapt to long-distance shipping, the box-type house divides the house into roof,
ground, column, and board. Several houses can be packaged as a single container volume for independent packaging directly.
Detail Specifications:
Roof System: Made of 4 parts: steel ceiling+roof purlins+glass wool insultion material+roo steel sheet.
There are also 4 big water gutters to store rainwater and flow naturally. And there are 4 drainpipes in each column,
so the rainwater will flow from the roof steel sheet, into the water gutters, at last flow from the drainpipes orderly.
Bottom System: Composed of purlins, fireproof MGO board and PVC floor leather.
Wall Panel: Standard rockwool sandwich panel, it is fireproof. There are other options to choose.
According to your local environment, we can provide you a suitable solution.
Steel Frame: Galvanized steel frame, the thickness is 2.3mm. It is very thick. Surface spray treated by machine after repeatedly polished.
So it is double protection.

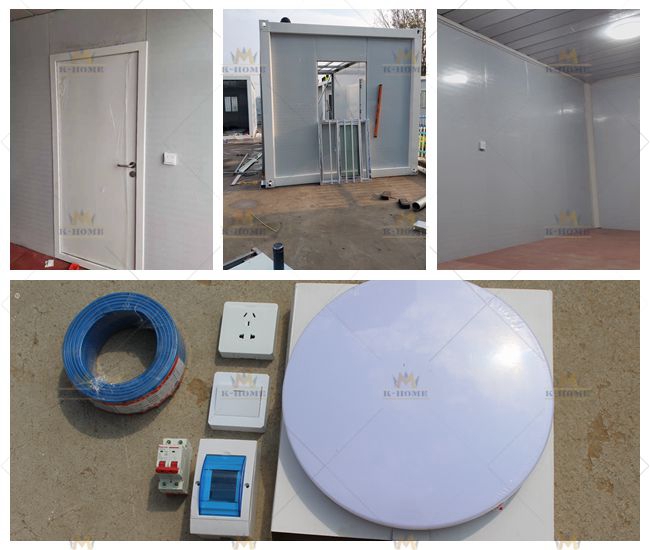

Door and Windows:
● Steel door, the interior of the door is filled with composite wood to make the door heavy and strong; It is fireproof;
● PVC steel sliding double glass window, with screens and anti-thief bar.
Accessories:
● Electricity system, including light, switch, socket, air breaker and wires, these can meet your site normal use.
● Internal skirting line, to decorate the inside. The material is PVC.
● Sealing strip, used on the joint between wall panel and steel frame, to better prevent rainwater and humid air go inside.
● Sealant glue, after installation, you need to seal every gaps.

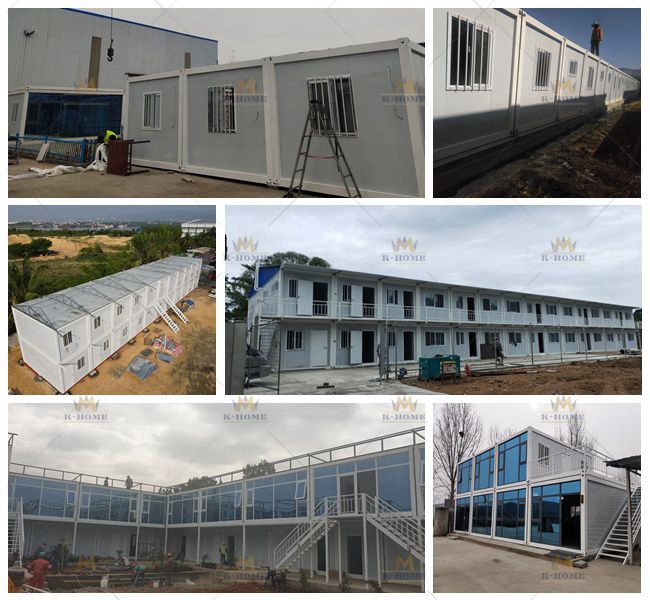

Project Show:
|
|
Flat Pack Modular Container Sleeping Quarters Images
|
