OEM Container House Labor Camp Portable Accommodation For Construction Workers

Product Categories
Henan K-Home Steel Structure Co., Ltd.
Contact Now

OEM Container House Labor Camp Portable Accommodation For Construction Workers

  • 1
  • 2
  • 3

Brand Name : KHOME

Model Number : KHPA

Certification : CE, SGS, ISO, PVOC

Place of Origin : Henan

MOQ : 10 sets

Price : USD2050/set~USD2100/set

Payment Terms : T/T, L/C

Supply Ability : 8000 square meters/month

Delivery Time : 30 days

Packaging Details : Loaded Into 20'GP/40'HQ Shipping Container

Frame : Galvanized Steel Structure

Suitable Temperature : -50c to +50c

Flooring : MGO Board

Connection : All by Bolt

Contact Now

OEM Container House Labor Camp Portable Accommodation For Construction Workers

Ⅰ. Introduction

No matter how remote or challenging of the environment, K-home can design, manufacture and install workfer housing. Accommodations, kitchens, dining halls, recreation,showers, offices, and laundry facilities.

Ⅱ. Detail Specification

Item Specification
Part 1 Roof System
1. Steel frame Q235 galvanized steel structure
2. Roof insulation

50mm glass wool insulation material
3. Ceiling 0.4mm steel ceiling
4. Steel sheet 0.5mm thickness steel sheet
Part 2 Floor system
1. Steel structure galvanized steel structure
2. Floor board 18mm thickness fireproof MGO board
Part 3 Corner column
1. 2.3mm Shaped Galvanized steel
Part 4 Sandwich wall panel
1. Wall panel 50mm rock wool sandwich panel ;

Outside color is light silver gray (0.38mm thickness steel );
Inside is white color steel (0.38mm thickness steel ).
Part 5 Door and Window system
1. Door

Steel door;

Size: 950*2000mm.
2. Window Plastic steel sliding window (including screens);

With 0.35mm Double glass and strength pvc window frame;

Width 930mm, height 1200mm;

Window rail is smooth.
Part 6 Electric system
1. LED light Type: LED energy saving lamp;
Power: 24W
2. Socket & Switch Include: Two sockets and one switch;
Note: The socket will be equipped according to the local standard.
3. Wire Includes: electric wire and conduit;
Use: The electric wire will be in the conduit and go through the wall panel for concealed installation.
4. Terminal socket Features: short-circuit protection; overload protection; under voltage protection.
Part 7 Accessories
1. Sealing Strip Used on the joint between wall panel and steel frame for better waterproof performance.
2. Lock Used when two containers connected with each other. As you tighten the lock, the containers will be fixed together strongly.
3. Waterproof butyl tape Self-adhesive
4. Rubber strip When there are two containers connected with each other, it is used in the joint between two containers for better fixation.
5. Internal skirting line Material: PVC;

Includes: Vertical internal skirting line and horizontal internal skirting line.
6. Steel Plate for Internal Connection Material: Stainless Steel;

Used on the joints between two bottom frames when different containers connected with each other.
7. Structure Adhesive Used for the reinforcement and seal of the steel frames.
8. Sealant Used for the joints of doors and windows for better waterproof.
9. Screws Include: bolts, drill tail screw, flat tap screw.

Ⅲ. Advantages

● ISO9001:2015 and CE Certificate;
● Many years experience of modular container;
● Professional design team and installation team;
● Efficient Transportation;
● Fast construction;
● Flexible Combination and widely usage;
● Cost saving and Sustainability;

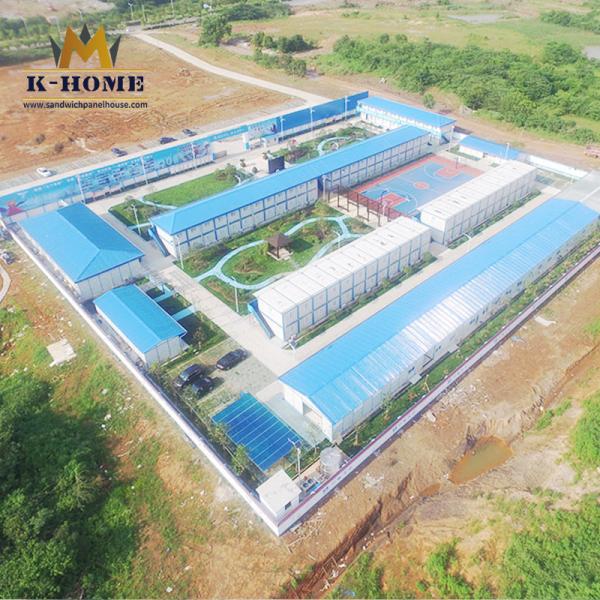

Ⅳ. Project Show
